World War I early warning acoustic mirror 650m north west of Bridge Farm

Listed on the National Heritage List for England. Search over 400,000 listed places

Explore this list entry

Overview

Heritage Category:
Scheduled Monument
List Entry Number:
1020311
Date first listed:
07-Nov-2001
User submitted image
Uploaded by Alan Marsh This photo may not represent the current condition of the site
View all

Location

Location of this list entry and nearby places that are also listed. Use our map search to find more listed places.

There is a problem

Use of this mapping is subject to terms and conditions.

This map is for quick reference purposes only and may not be to scale.

What is the National Heritage List for England?

The National Heritage List for England is a unique register of our country's most significant historic buildings and sites. The places on the list are protected by law and most are not open to the public.

The list includes:

🏠 Buildings
🏰 Scheduled monuments
🌳 Parks and gardens
⚔️ Battlefields
Shipwrecks

Find out more about listing

Historic England Archive

Search over 1 million photographs and drawings from the 1850s to the present day using our images archive.

Find Photos

Official list entry

Heritage Category:
Scheduled Monument
List Entry Number:
1020311
Date first listed:
07-Nov-2001

Location

The building or site itself may lie within the boundary of more than one authority.

District:
Redcar and Cleveland (Unitary Authority)
Parish:
Non Civil Parish
National Grid Reference:
NZ 61480 22952

Reasons for Designation

The use of aircraft as offensive weapons was a significant 20th century development in the history of warfare, and provoked new systems of strategic air defence. Experiments in early warning systems started before 1920 with the new possibility of attacks by airships. Early warning was initially based on visual spotting, but acoustic detection devices were soon developed. The principle of acoustic detection is relatively straightforward: a receiving dish reflected the sound of distant aircraft engines onto a focal point where it was detected by a listener or, later, by microphones. There were three main types of acoustic device: mirror, wall and disc. Mirrors were upright concave bowls between 3m and 4m in diameter; the walls were curved vertical structures up to 61m in length; the disc system used horizontal concave bowls designed for use in pairs as aircraft passed overhead to measure speed. At their most sophisticated, the devices could identify the sounds of surface vessels or aircraft up to 25 miles (c40km) away. Research into acoustic early warning was carried out in a number of countries during the early 20th century. British experiments at the Royal Flying Corps research establishment at Farnborough tested parabolic sound reflectors of varying shapes and curvature, and led to the first true sound mirror at Binbury Manor in the summer of 1915, a circular disc cut directly into a low chalk cliff. The first operational acoustic reflectors were a pair of adjustable mirrors erected on the Kent coast in 1917, followed by a series of concrete static mirrors established on the north east coast later in World War One. Further experiments were carried out after the war. This led to the building of a complex chain of mirrors on the Kent coast around Hythe in the late 1920s. Unrealised plans were also drawn up for an ambitious scheme to be installed around the Thames estuary. Acoustic devices always remained susceptible to interference from extraneous noises and adverse weather. As aircraft performance increased, the time between detection and arrival of enemy aircraft rapidly shortened and reduced the value of acoustic devices as an early warning system. By 1936 the technology of radar had replaced acoustic methods as the main form of early warning, although acoustic systems remained in use at anti-aircraft and searchlight batteries, and as backup systems in the event of radar being jammed. A national survey of acoustic early warning devices has identified only around 11 sites where remains of acoustic detection survive. Field evidence of this important aspect of the 20th defence of Britain is thus rare and all surviving examples are considered to be of national importance.

The World War I early warning acoustic mirror 650m north west of Bridge Farm, is only one of four known surviving examples in the north east of England. It survives well and makes a significant contribution to the study of early 20th century defences in England.

Details

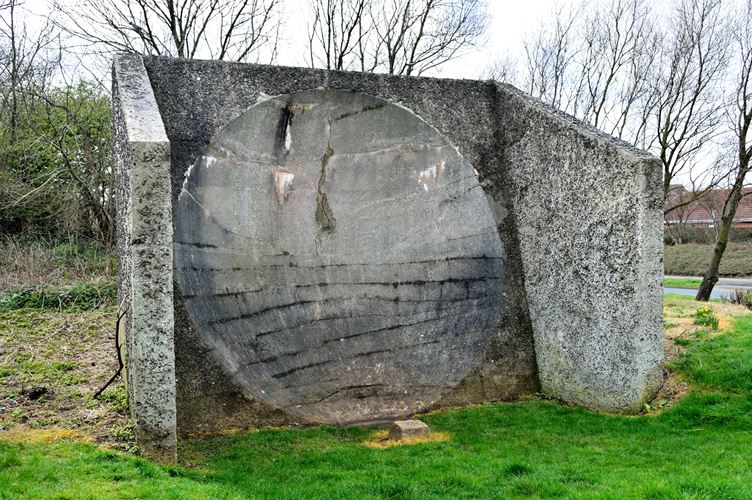

The monument includes an early 20th century military early warning device known as a sound mirror. It is located 1.2km inland from the coast on a flat plain on the southern side of the Tees estuary. The mirror was part of a chain of similar acoustic devices located on the north east coast extending from the Tyne to the Humber. They were erected to provide early warning of potential attacks on the important industrial complexes in the north east from ships and Zeppelins during World War I. Little is currently known of the history and development of this particular system and it remains something of an enigma. Successful experiments in acoustic detection date to 1915 and it is thought that the Tees/Tyne early warning system dates to the last two years of the war. This mirror faces NNE and was positioned to cover the mouth of the Tees estuary. There were at least two other mirrors known to be part of the Tees estuary system. One was located at High Springwell 17km away on the northern side of the estuary and was orientated to cover the north eastern approaches. This was demolished in the 1960s. The other mirror is located overlooking the eastern approaches to the estuary 17km to the east at Boulby and is the subject of a separate scheduling. The mirror is a `U'-shaped concrete built structure comprising a thick wall with an inclined face and a shallow concave bowl shaped into its centre. On either side of the wall are projecting flanking walls, which helped to protect the reflector from noise interference and also supported the structure. The reflector is a smooth bowl 4.5m in diameter, inclined approximately 11 degrees to the vertical. The rear wall is 5.8m in length and is 4m high. The two flanking walls are 3.9m long. At a distance of 2.5m in front of the reflector there is the stub of a metal pipe set vertically into the ground. This was used to support a microphone and carried wires to the headphones of the operator who sat in a trench nearby. The location of the trench is currently unknown. The monument also includes a margin of 5m beyond the mirror on the northern, western and southern sides in which remains of the listening facilities may survive. The mirror is Listed Grade II*. The fence surrounding the mirror is excluded from the scheduling, although the ground beneath it is included.

MAP EXTRACT The site of the monument is shown on the attached map extract.

Legacy

The contents of this record have been generated from a legacy data system.

Legacy System number:
34829
Legacy System:
RSM

Sources

Books and journals
Tann, G, The Early Warning Mirror at Wheatlands Farm, Marske, (1991), 47-48
Hay, T, 'Cleveland Industrial Archaeology Society Newsletter' in Another Zeppelin Listening Post, , Vol. No. 74, (1999), 6-7
Sockett, E W, 'Yorkshire Archaeological Journal' in Yorkshires Early Warning System 1916-1936, , Vol. VOL 61, (1989), 181-188

Legal

This monument is scheduled under the Ancient Monuments and Archaeological Areas Act 1979 as amended as it appears to the Secretary of State to be of national importance. This entry is a copy, the original is held by the Department for Culture, Media and Sport.
